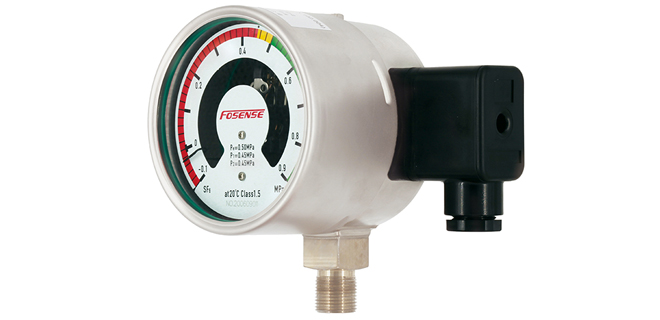

FXM100/TW Series LoRa Wireless Remote SF6 Gas Density Relay
Description
The FXM100/TW series LoRa wireless remote SF6 gas density relay can achieve LoRa wireless remote transmission function. Full power with SF6 density relay. It can directly indicate the density (P20) value on the dial, which is used to monitor the density (P20) value of SF6 gas in closed containers. When the density (P20) value reaches the set value, the internal contact logic state changes, thereby outputting the contact signal; It also has real-time digital information collection, calculation, and LoRa wireless remote transmission,which can provide real-time data for the online monitoring system of equipment status. Mainly used for SF6 Insulated GIS switchgear, circuit breakers, pole mounted switches, and transformers, as well as SF6 gas online monitoring systems.
Monitoring range
-0.1~0.9MPa (customizable)
Monitoring accuracy
(SF6 is gas state) 20℃: ±1.0%(F.S.) or ±1.6%(F.S.) -40℃~60℃: ±2.5%(F.S.)
Ingress protection
IP66
Ambient temperature
-40℃ 60℃, relative humidity 95%RH
Leakage rate
(helium leak detection)
Interface size
M20 1.5、 (customizable)
Type of contact
Magnetic assisted electric contact switch 80% Ag20% Ni contact gold plated 10μm
Insulation performance
Resistance of insulation>100MΩ(500V DC)、power-frequency withstand voltage≥2Kv,50/60 Hz 1min
Contact electrical parameters
≤30W/50VA、≤1A、≤220VDC/380VAC
Shock resistance
≤50g(Oil filled) or ≤30g(Oil free)
vibration resistance
20m/s²
Weight
≈1.2kg
Supply voltage
24DC
Power consumption
≤2W
Communication
LoRa wireless transmission, transmission distance over open spaces 5km
Anti-electromagnetic interference
IEC61000-4-2:4class(15KV) IEC61000-3:3class(10V/m)
IEC61000-4-4:4class(4KV) IEC61000-45:4class(+/4KV)
IEC61000-4-6:3class(10V) IEC61000-48:5class(100A/m)
IEC61000-4-9:5class IEC61000-4-10:5class
IEC61000-4-11:60%Ut
Application
The FXM100/TW series LoRa wireless remote SF6 gas density relay, combined with LoRa data transmission radio DT U, which can achieve LoRa wireless transmission between FXM100/TW and DTU.And DTU outputs externally RS485 (ModBus RTU), TCP/IP, 4G and other communication interfaces and protocols.
